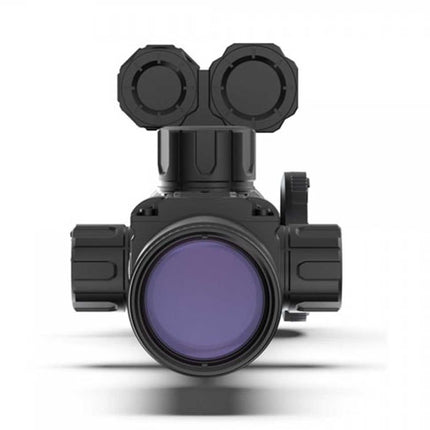

Pard DS35 70RF Night Vision Rifle Scope 5.6-11.2 850nm
The Pard DS35 70RF has a new regular tube style design, with integrated electronic ballistic function and LRF. A new traditional circular display showcases an upgraded GUI and allows for reticule centralisation. Multi colour palettes, horizontal 18650 battery mounting, included 30mm mounts, recoil activated recording and host of other enhancements make the DS35 a multi functional, all in one device.
We are an OFFICIAL Pard stockist and we are excited to bring the latest in Nightvision scopes to you. The videos below have been produced by our team....so we know this product, tested by us.

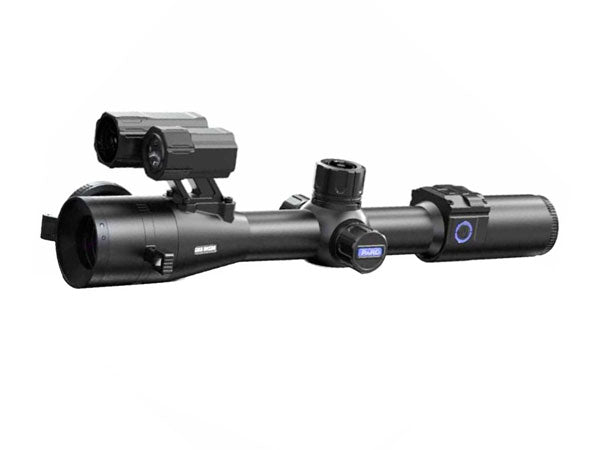

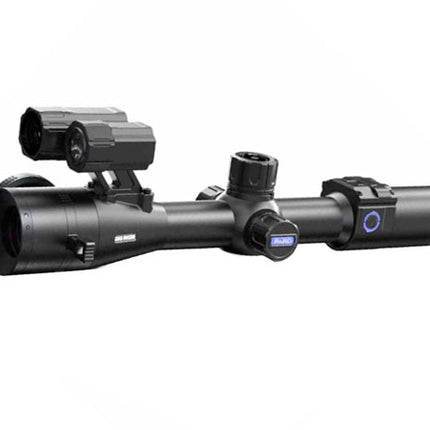

The first thing that users will notice is that the DS35 now takes the form of a traditional rifle scope. Core to the new form factor is a world first for NV Scopes, an 800x800px round display. The unique LTPS unit delivers high-clarity images with rich contrast and an extra-wide field of view for enhanced situational awareness. This perfectly formed screen fits neatly in the DS35s eye piece, for an experience close to using a traditional glass day scope. Other advantages include a 70mm objective, 5.6-11.2x magnification range and a 30mm Aluminium alloy body that enables the use of both traditional scope rings and rifle specific mounting systems.
At the heart of the DS35 is a state-of-the-art CMOS 0.001 Lux 2K imaging sensor, which when coupled with the units directional 850nm IR can see user push their night shooting out to 350m and beyond. Clarity is further enhanced by Pards custom developed VLEA imaging engine. This clever software upgrade helps the DS boost clarity by over 20% when compared to the older NV008p models.
Whilst clarity and handling are two of the 35 LRFs most obvious features, they are not the only enhancements shooters can expect.
The new kid on the block features a more intuitive one shot zero, where the image shifts to compensate for elevation and windage adjustments. On the LRF models shooters also benefit from a 1000m rangefinder with a built-in on-screen ballistic calculator, which delivers the shooter an instant hold over and an unrivalled level of accuracy.
Like other Pard models the DS35 is a great choice for both day and night use, with full colour image modes available until the darkest parts of the night, at which point users can switch colour pallets for optimal image recognition when they can make use of the units powerful built-in IR.
In addition to improved tech, the DS35 retains all the popular features of the previous models including Wifi Connectivity, self-activated recording and a fully waterproof construction.
Key features
- 800*800 Circular LTPS display 1920*1080/ 2560*1440 , the first in the world
- Image shift zero
- Ballistic calculator
- Patented focus-free lens cap
- Long eye-relief display system (LEDS)
- 350m Adjustable IR fifill light
- 1200yds laser rangefifinder
- Self-activated recording
- Completely new UI
- 4 Image modes (color, black and white, green and yellow)

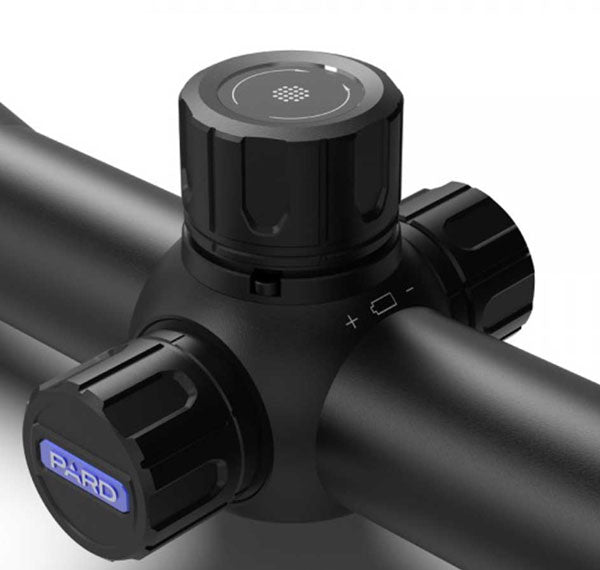

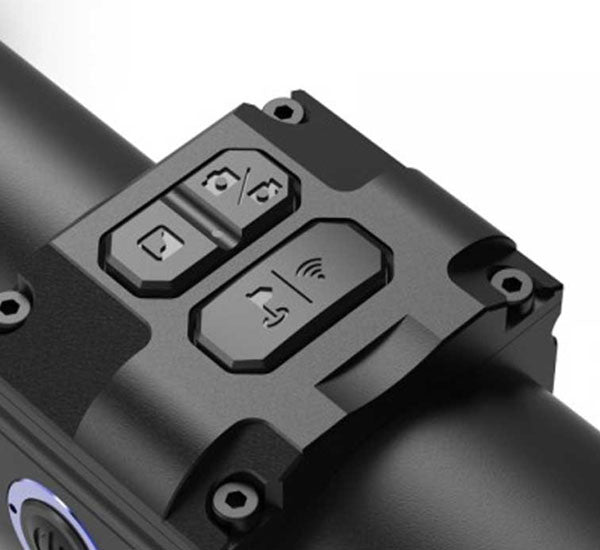

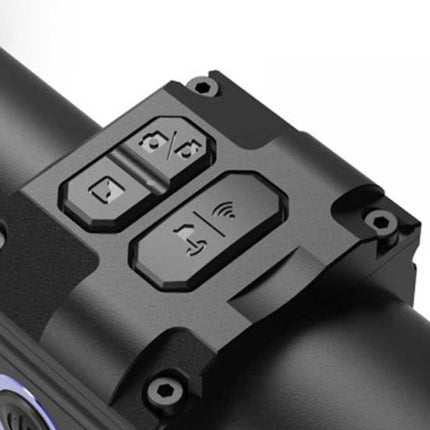

- Multi-functional control knob
- WiFi
- IP67 Waterproof
- 6000J Recoil resistance
Charging - the 18650 battery is a powerful battery, we always recommend charging the battery in an external charger.
| Model |
DS35 |
| Sensor |
| Resolution(px) |
2560*1440 |
| Pixel size(um) |
2.9 |
| Sensitivity(lux) |
0.001 |
| Frame rate(fps) |
30 |
| Image engine |
PARD VLEA |
| Optics |
| Objective lens |
50mm F2.4/70mm F2.4 |
| Optical magnification(x) |
4/5.6 |
| Digital zoom(x) |
2 |
| Field of view (HxV) Horizontal |
4.873.4 |
| Field of view (HxV) Vertical |
4.873.4 |
| Field of view (HxV) Diagonal |
6.874.8 |
| Foclkranpp |
5m-oo |
|
|
| Eye relief(mm) |
100 |
| Exit pupil(mm) |
10 |
| IR Illuminator |
| IR type |
VCSEL |
| IR power(W) |
5 |
| IR illuminating level |
3 levels |
| IR distance(m) |
350 |
| IR wavelength(nm) |
850/940 |
| Display |
| Type |
IPS LCD |
| Resol ution(px) |
800*800 |
| Reticle style |
6 |
| Reticle color |
white/yellow/green |
| Color mode |
Color/Mono BW/Mono Green/Mono Yellow |
| Photo/Video |
| Photo resolution(px) |
2560*1440 |
| Photo format |
JPG |
|
|
| Video resolution(px) |
1920*1080 |
| Video format |
MP4 |
| Storage |
TF card(128GB) |
| Main Function |
| LRF detection range |
5-1200yds(LRF version) |
| Power Supply |
| Battery type |
Lithium Ion 18650 |
| Output voltage(V) |
3,7 |
| Operating time(h,max) |
8 |
| External power supply(V) |
USB Type-C |
| Environmental Characteristic |
| Degree of protection |
IP67 |
| Operating temp(C/F) |
-20oC-50C-5F-120oF |
| Recoil power(J) |
6000 |
| Material |
| Housing |
Aluminium Alloy |
| Measurement |
| Product dimension |
350*88*95(w/o long eyepiece) |
| (Lx Wx H, mm) |
410*88*95(w/ long eyepiece) |
| N.W/pcs |
680(w/o battery) |
| (with/without battery, g) |
725(w/ battery) |
This is the UK British Standards approved version - please be aware early release promotions showing NON UK British Standard versions are NOT the official versions from the official importers.
We do not ship this outside of England, Scotland and Wales.
