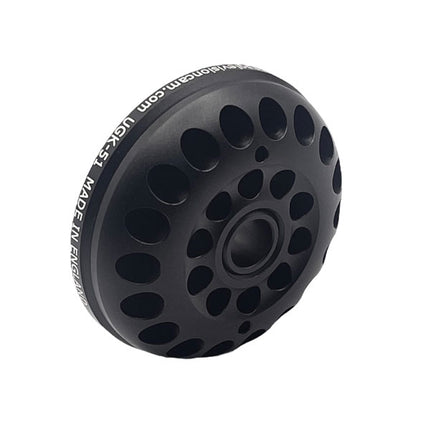

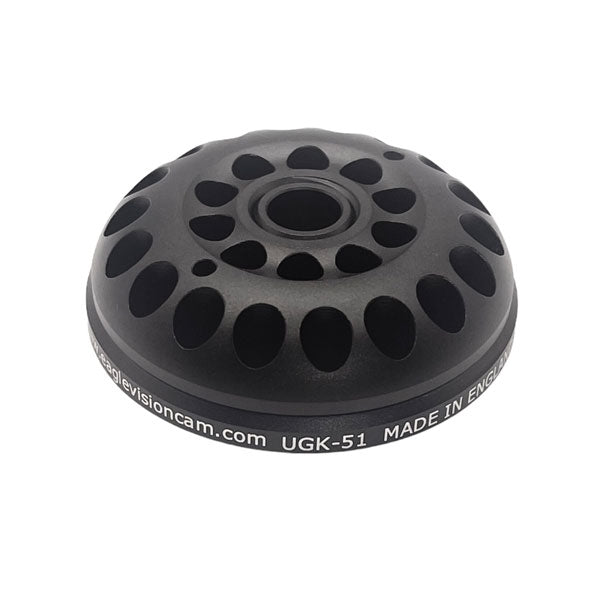

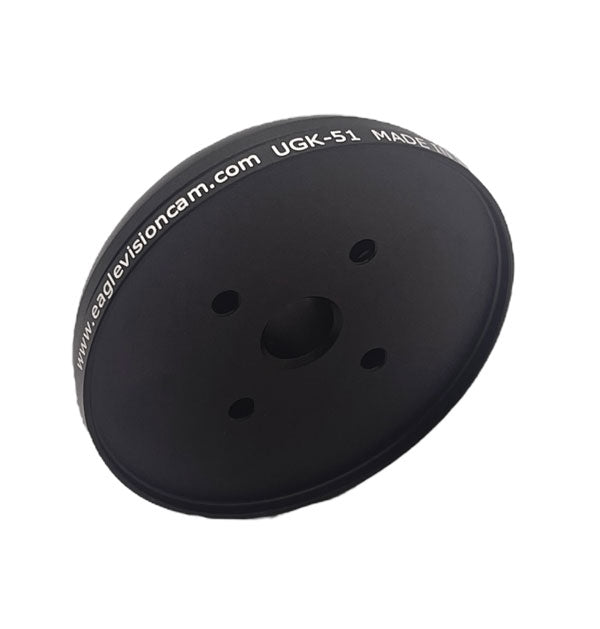

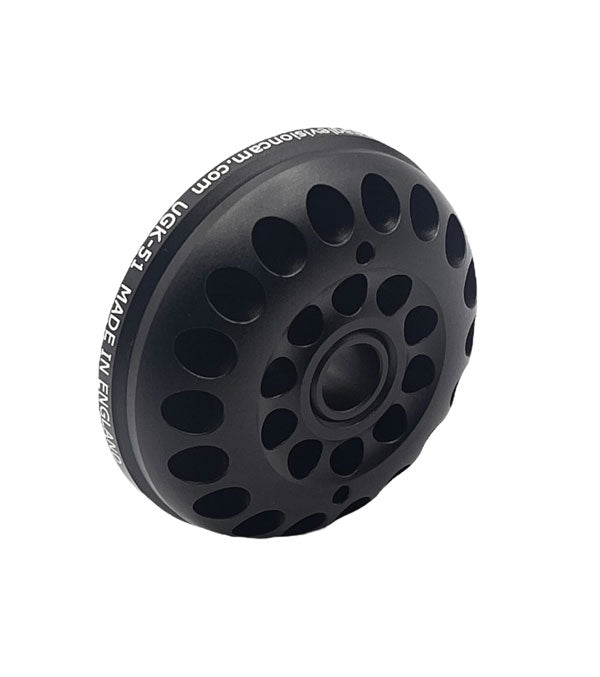

Eaglevision - AGT VIXEN 1/2 X 20 UNF Moderator Adaptor
This adaptor allows you to connect any standard 1/2 x 20 UNF moderator to your rifle shroud.
VIXEN (ALL THE MODELS )
BE AWARE YOU WILL NEED TO MAKE 4 X HOLES IN THE BAFFEL / BAFFLE FROM YOUR RIFLE - WE ARE NOT RESPONSIBLE IF YOU MESS THIS UP.
Please follow this guide, to ensure correct installation.
1. Unscrew and Extract the aluminium baffle.

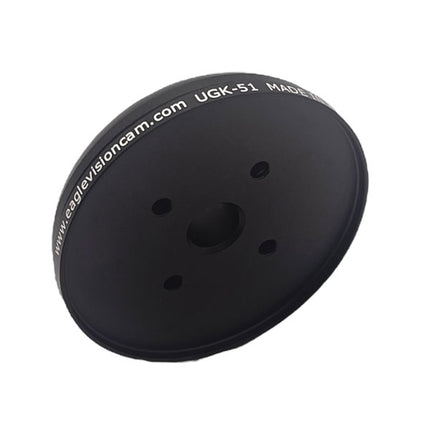

2. Make a 4x 3mm hole with a 3mm drill bit in your baffle same locations as original holes.

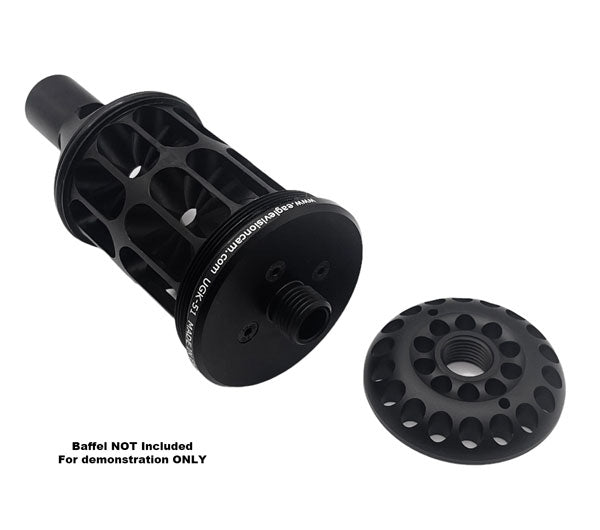

3. Carefully line up the 1/2 x 20 UNF adaptor hole with your baffle, place the screws and tighten up with the supplied locking nuts.
4. Re–insert the baffle and tighten.
This adaptor allows you to connect any standard 1/2 x 20 UNF moderator to your rifleshroud.
This item comes with self tightening tools (no other tools required).
Fits 177, 22, 25 and 30 caliber.

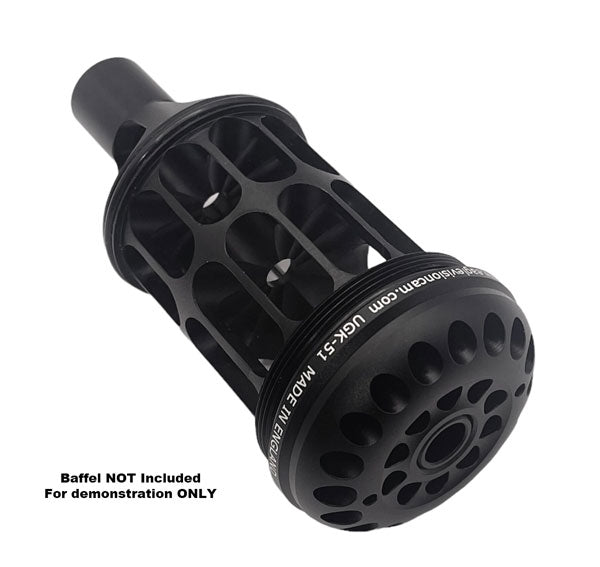

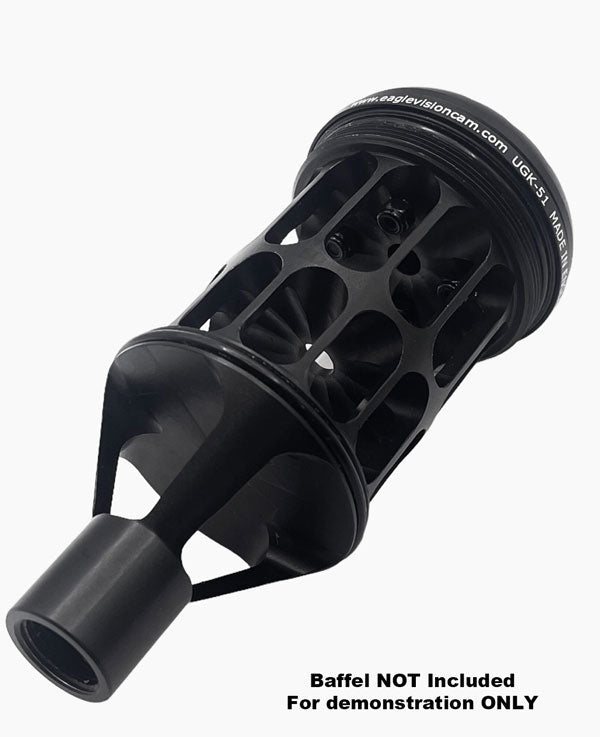

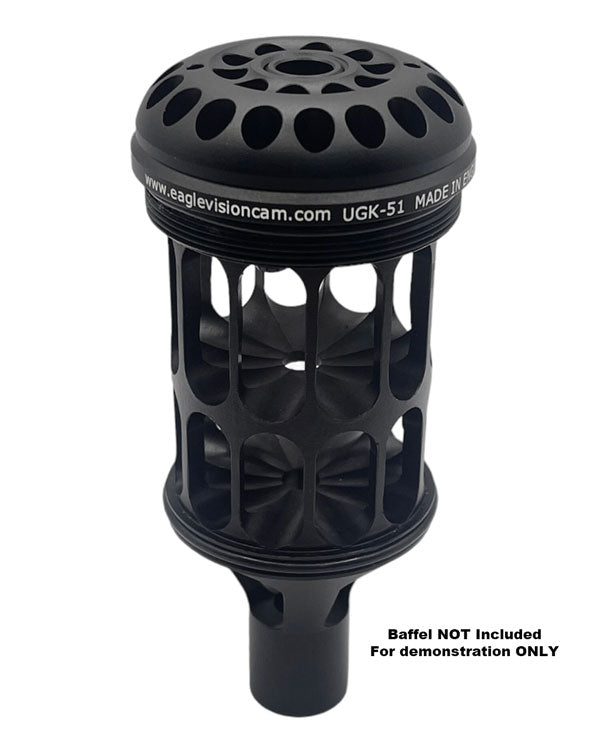

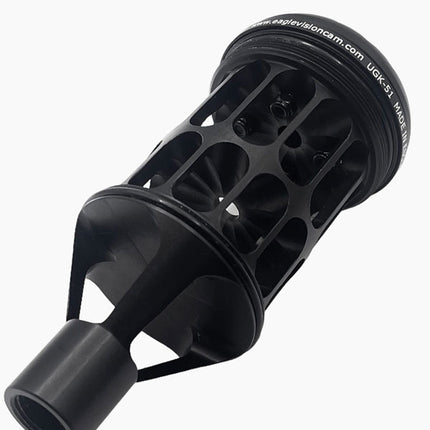

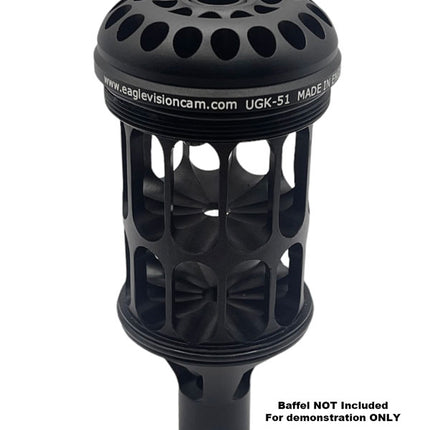

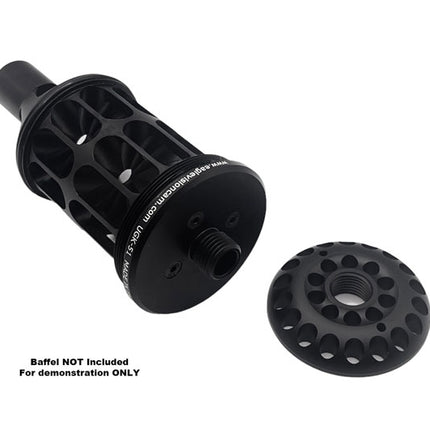

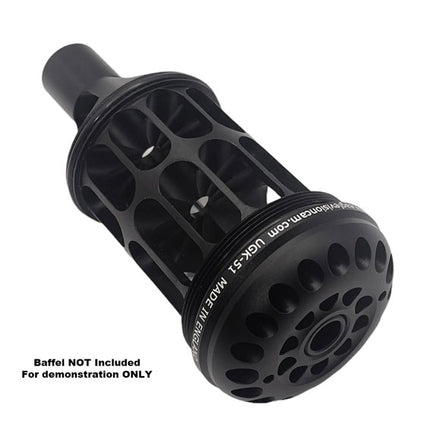

The baffle / baffle is NOT included just to show how to install.

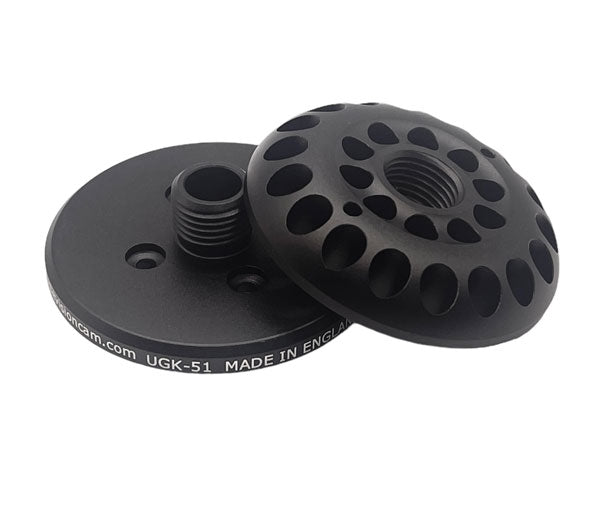

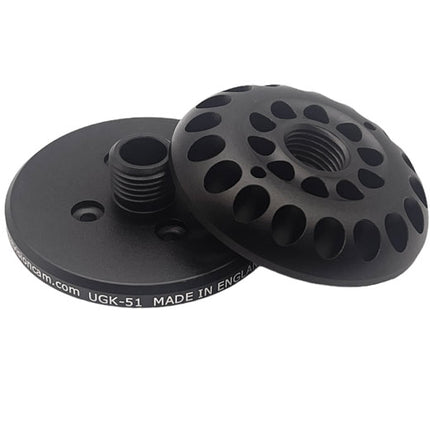

Male side: 1/2 UNF X 20
Outer diameter: 51mm
Weight: 40grm
This is a home install item and we provide no instruction on the fitting. It is an aftermarket fitting and installed entirely at the customers own risk. Airgun 101 Shop is not liable in any way for any damage to any item or harm to any person when using or installing this product.
