Description

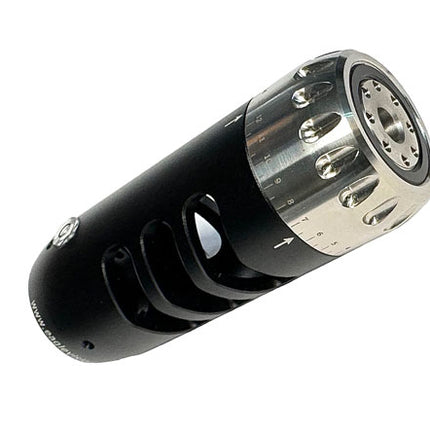

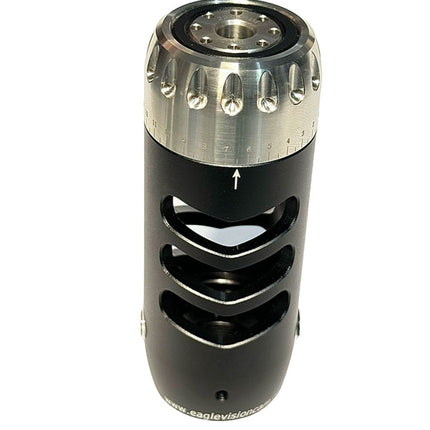

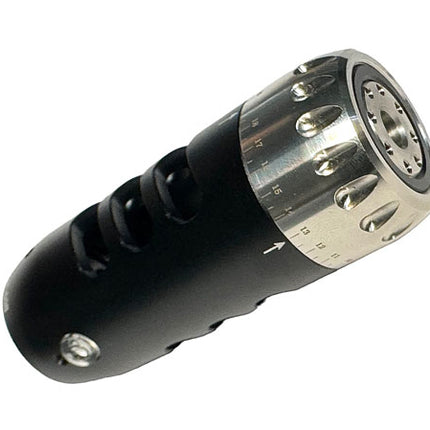

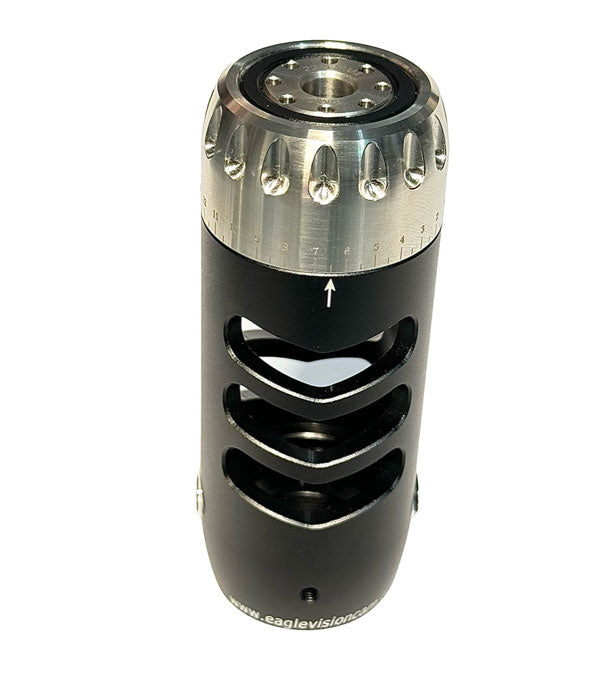

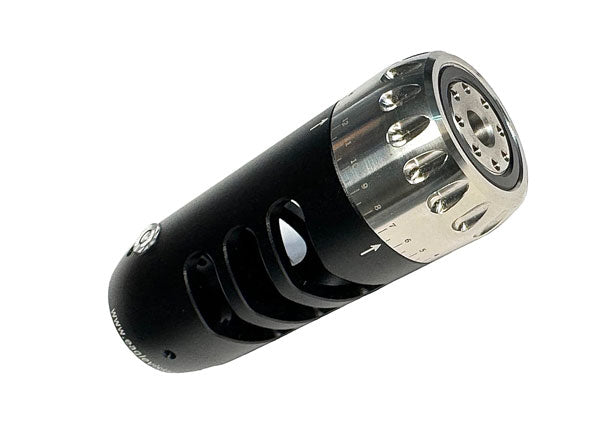

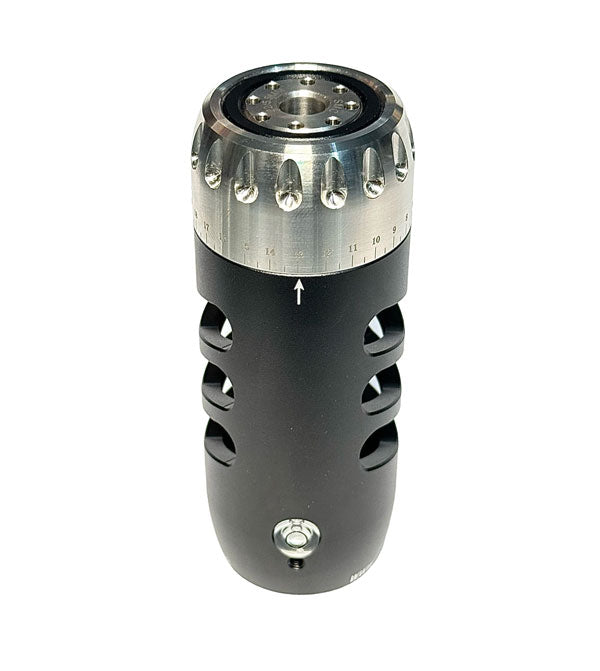

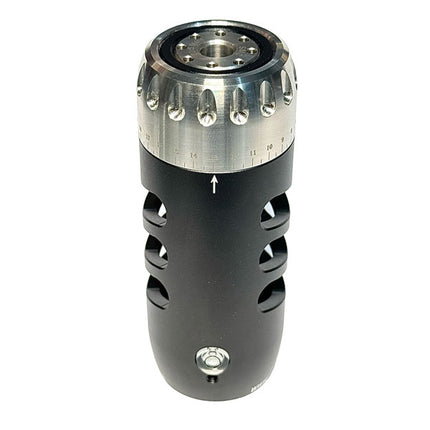

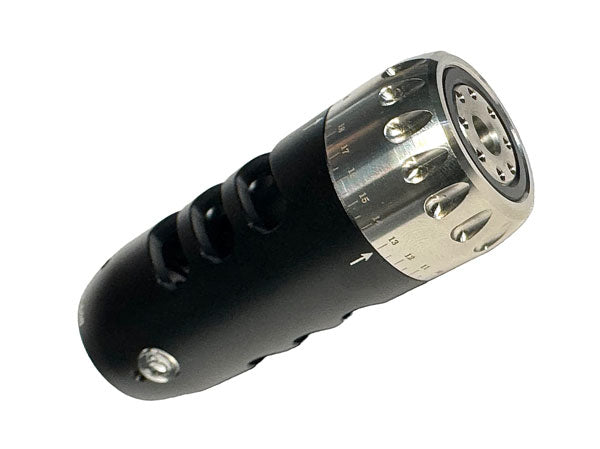

Eaglevision - All in one – Muzzle Brake, Air Stripper & Harmonic Barrel Tuner
MZHT-50B
1/2 UNF Fitting
This Air Stripper and harmonic all in one tuner is designed to balance the rifle.
-
Our new multi-caliber all on one Tuner system can be used in different air rifles with various calibers.
-
The interchangeable caliber adaptor can easily be swapped for another adaptor, with the tools provided.
-
There are no moving parts, all components are fully secured with ‘O’ rings to improve accuracy, limit vibration and avoid pellet clipping.
-
These products are manufactured by 5 Axis CNC tolerance of + or – 0.05
-
All our end adaptors can be used with future Eagle Vision sound moderators, muzzle brakes and some harmonic barrel tuner models.
-
The caliber specific adaptor helps to increase accuracy;
-
The front caliber adaptor with 8 holes, looks great and is designed so to allow insertion of the stainless steel bar tool, to tighten or loosen the adaptor.
-
Caliber adaptors:.177, .22, .25 and .30
Product specifications:
MZHT-50B
-
Length: 90.3mm
-
diameter: 35mm
-
Weight: 303 grams
-
End Thread: M23 X 1
-
Front Threads: M15X0.6
-
Inner tube made of aluminium anodised Black outer adjustable tube made from stainless steel silver its natural colour.
Product includes:
-
1x all in one main body
-
2x O-rings
-
6x grab screws
-
1x Allen key
-
1x end adaptor 1/2 UNF x 20
-
Each one includes: 2x stainless steel tool bar 1x Allen key
-
1x waterproof Storage Case
-
4x piece of caliber specific adaptor .177, .22, .25 and .30 (included 8x stainless steel tool bars)
Product specifications:
-
Length: 15mm
-
Front Outside diameter: 19mm
-
177 Weight: 15gr
-
22 Weight: 14gr
-
25 Weight: 13gr
-
30 Weight: 12gr
-
Threads: M15X0.6
Once fitted / used / fired through this product is regarded as used.
