Description

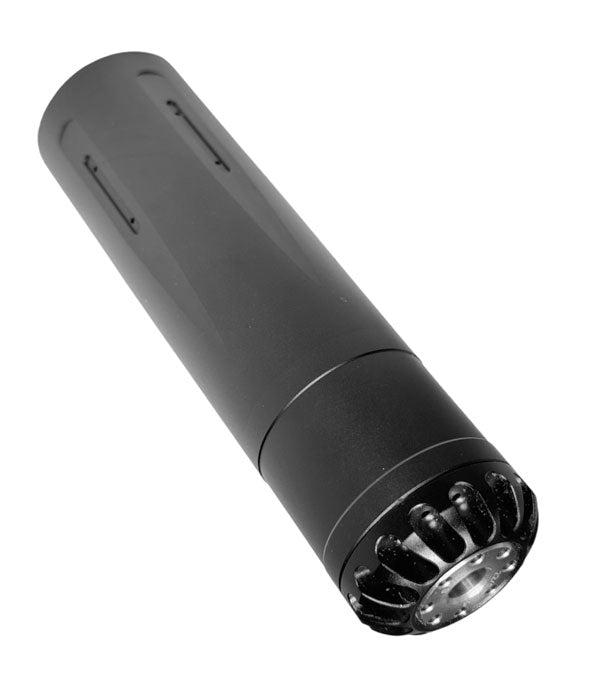

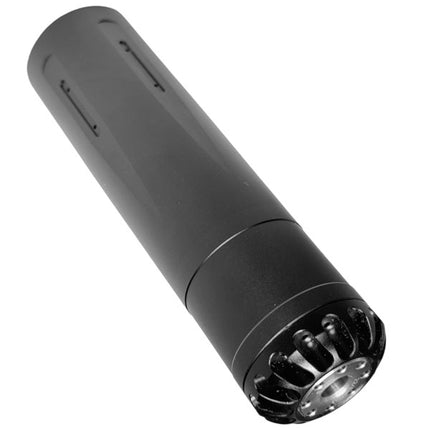

EagleVision - HELIA-S34 Sound Moderator
Interchangeable Caliber (Ideal For FX Panthera, King, DRS)
L125mm D34mm
- Our multi-caliber sound moderator system can be used with different air rifles and various calibers.

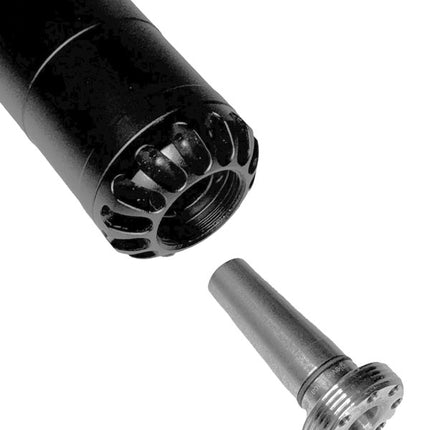

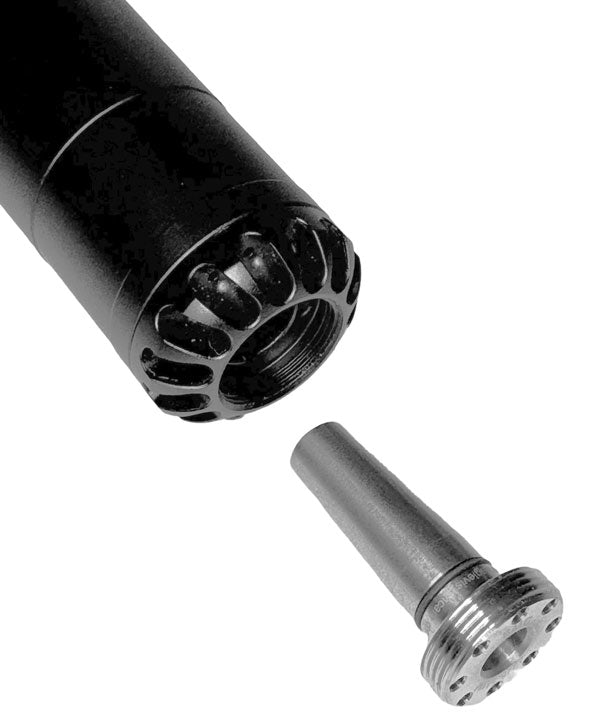

- The interchangeable internal liner can be swapped with another caliber liner without opening the moderator, with the tools provided.
- There are no moving parts, all components are secured with ‘O’ rings to improve accuracy, limit vibration and avoid pellet clipping.
- All parts are manufactured by CNC; Some internal parts have tolerance of + or – 0.02.
- All our liners can be used with future Eagle Vision sound moderator models.
- The caliber specific liner reduces the sound level to a minimum.
- The space between the first and the second tube is pre-wrapped with ballistic fiber felt to reduce the sound report.

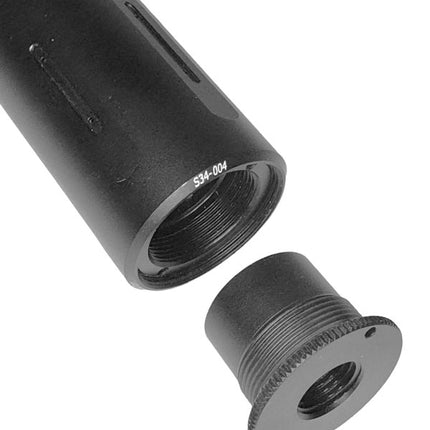

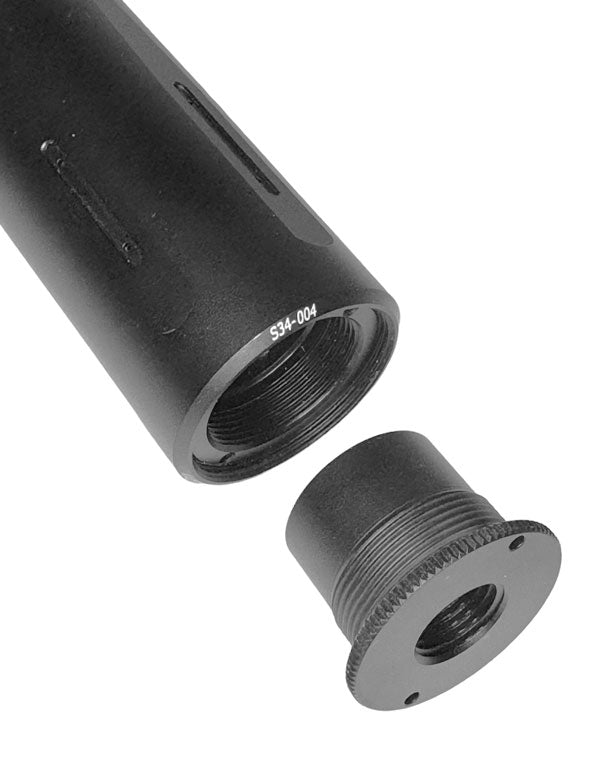

- Also comes with an interchangeable end cap 1/2 UNF

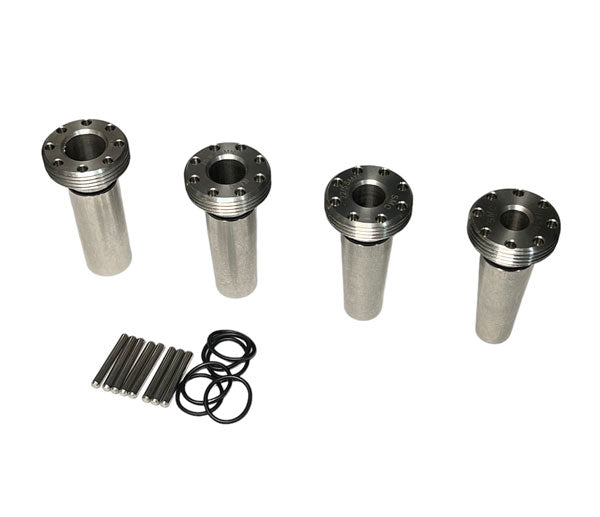

- Available caliber liners: .177, .22, .25
- Can be used with liner or Air Stripper caliber adaptors, .177, .22, .25, .30
Product specifications:
- Length: 125mm
- diameter: 34mm
- Weight: 134g
- End Threads size: M23X1 interchangeable to 1/2 UNF, M14X125, M18, M20
- Front threads: M15x.06
- Moderator materiel: aluminium anodised black
- Liner: materiel – aluminium anodised black
- End connection materiel: aluminium anodised black
- Air striper caliber adaptor Materiel: stainless steel

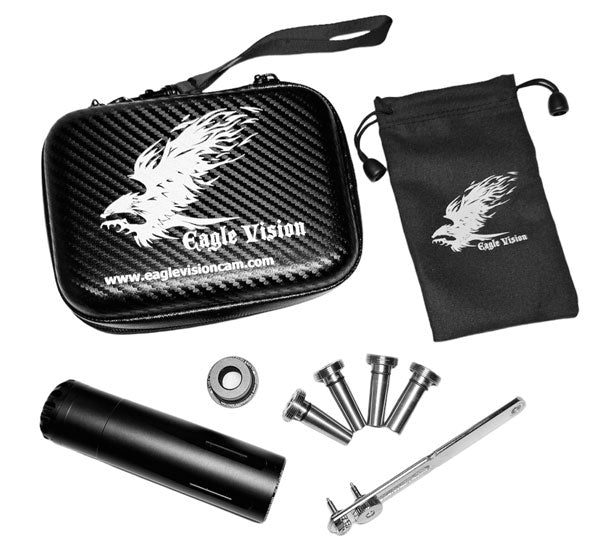

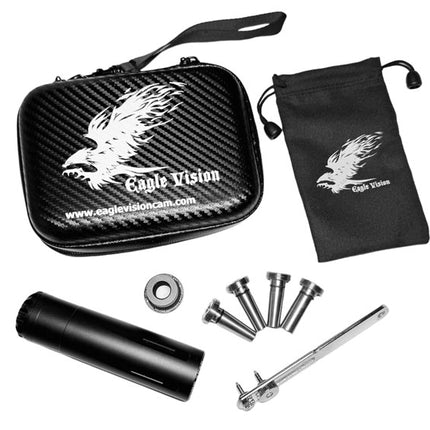

Includes:
- 1x Sound Moderator
- 1x .177 Liner (8x spare o-rings) 14g
- 1x .22 Liner (8x spare o-rings) 13g
- 1x .25 Liner (8x spare o-rings) 12g
- End adaptor 1/2 Inch UNF
- 1x Tool
- 1x Storage Case
- 1x O-ring silicone grease
- 1x soft protection pouch
- 1x Waterproof case
- 1x pack of grub screws, Allen key, o-rings.
Please note:
Before inserting the liner, you must carefully grease both O-rings located on each end.
Carefully push the liner in, gently twisting it left and right, as it continues to the end.
When removing the liner, and to avoid the breaking the O-rings, gently repeat the same alternating twisting procedure.
This silencer / moderator is for Unlicensed Airguns only.
We are not responsible for clipping or any misalignment of your barrel. If the moderator is fitted and or used / damaged in any way it is not returnable.
We do not ship this item outside of the UK
You must be over 18 to purchase this item as declared on entry to the site.
