Description
Element Optics- Nexus Gen II 4-25x50 APR 1C MRAD Rifle Scope
Nexus just went Gen II - now with the revolution indicator.
Contact Us to Order
- 30mm Main Body Tube
- Compact, Lightweight design

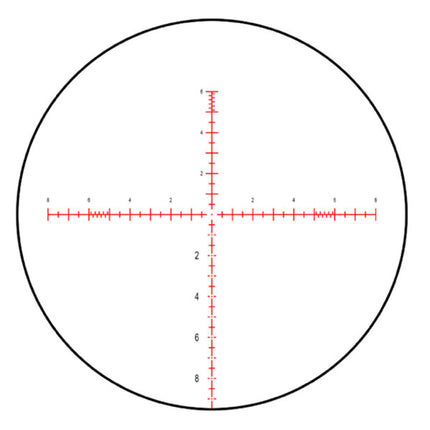

- Illuminated, First Focal Plane Reticle
- Side Parallax: 10yds-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer
- Tool-free Resettable Turrets with 10 MRAD / 25 MOA per Revolution

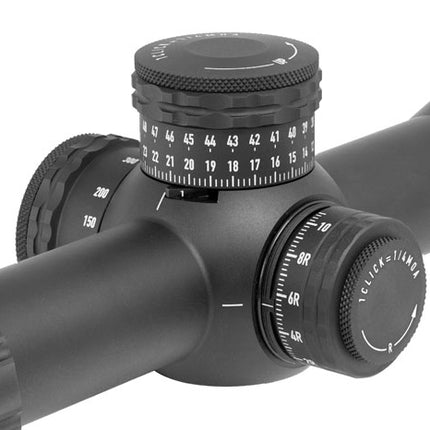

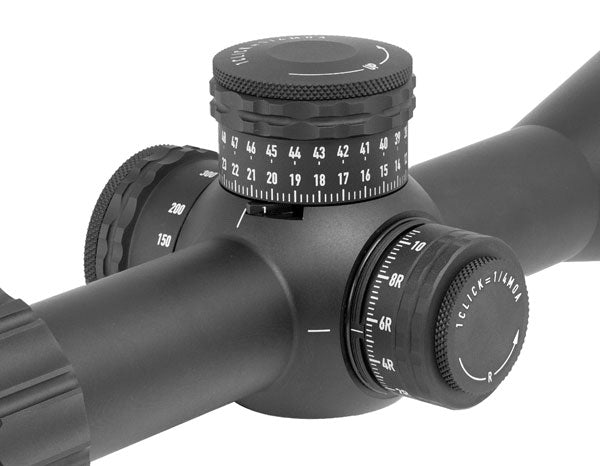

- Revolution Indicator
- Tool-Free Mechanical Zero-Stop

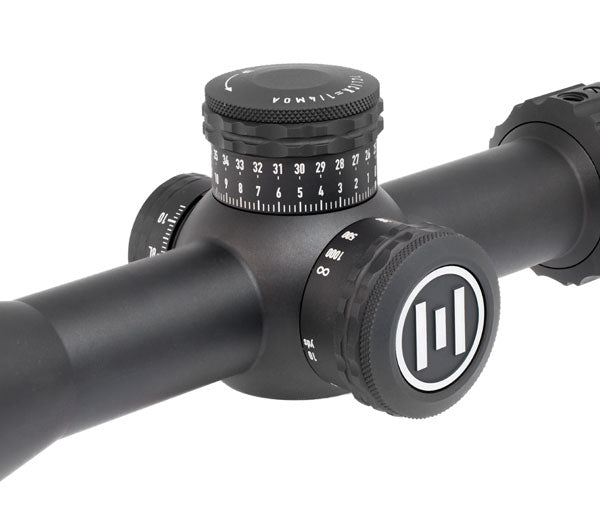

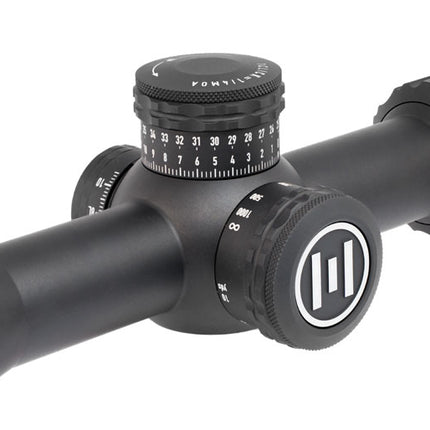

- Push-Button Illumination
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Aperture Ring & Neoprene Cover included
The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The GEN II takes the DNA of the first generation NEXUS and pushes it to another level with a 4-25x Magnification, a new Turret System and Digital Illumination – the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: Simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Our design team of global competition winners & hunters understand optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions.
| MAGNIFICATION RANGE |
4-25x |
| TUBE DIAMETER |
30mm |
| OBJECTIVE LENS DIAMETER |
50mm |
| EXIT PUPIL |
7.1-2.0mm |
| EYE RELIEF |
77-92mm |
| FIELD OF VIEW |
@100yds: 29.2-4.7 ft |
@100m: 9.7-1.6m |
| CLICK VALUE |
1/4 MOA (20 MOA / REV) |
1/10 MRAD (10 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE |
100 MOA |
29 MRAD |
| WINDAGE ADJUSTMENT RANGE |
40 MOA |
11.6 MRAD |
| MINIMUM PARALLAX |
10 YDS |
10 METERS |
| LENGTH |
13.8” |
350mm |
| WEIGHT |
30.7oz |
870gr |
